Wrangler (JL JLU) - ROCK RAIL GEOMETRY CORRECTION DROP BRACKETS
$0.00
$0.00
Sale
Sold out
Click to Launch Powder Coat Studio - To see some examples!
Build Your Order
Couldn't load pickup availability
- Heading
- Heading
- Heading
Description
JEEP RUGGED STYLE™ ROCK RAIL (GEOMETRY CORRECTION BRACKETS) for 2018 TO 2026 JL Wrangler Models
Size Selection
Front
3.5" - recommended for 3.5-4" lifts
4.5" - recommended for 4.5-6.5" lifts (taller lifts contact us)
4.5" - recommended for 4.5-6.5" lifts (taller lifts contact us)
Rear
2.5" - recommended for 0 to 4" lifts
2.5" - recommended for 0 to 4" lifts
3.5" - recommended for 4 1/2 to 9" lifts
Why Rock Rails? We use the term "Rock Rail" to describe our geometry correction brackets. Geometry correction does just that....corrects the geometry of the control arms. There are 2 schools of thought on this. Some prefer to keep the arm in its factory location for clearance purposes. You did gain some clearance but that's all you gained. The cons to that will outweigh the pros for most customers. Largest con being ride.
If you lift your Jeep you may notice a little harsher ride and a little more squirrely under braking....kinda darty.
By restoring the angles back to factory, or near factory, the ride is IMPROVED, especially when combined with our Progressive Rate coils. Braking feels confident and more controlled. Here's our most unique feature.....to counter the bracket dropping your arms and restoring angles, we have incorporated a rock slider into the bracket.
Hence the term "Rock Rail". So it's essentially a geometry correction bracket that restores 4 link angles AND still gives your Jeep the Rugged Off Road ability you want. It's really the best of both worlds!
Jeep JL with White Lift Kit, Polished Faceplates and our NEW Front and Rear Rock Rails!

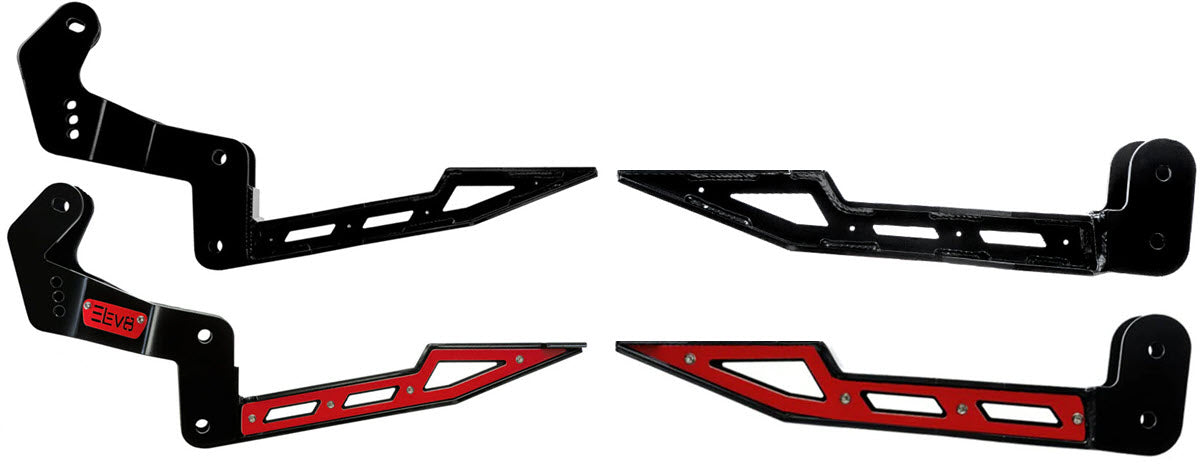

Front Geometry Correction Drop Brackets

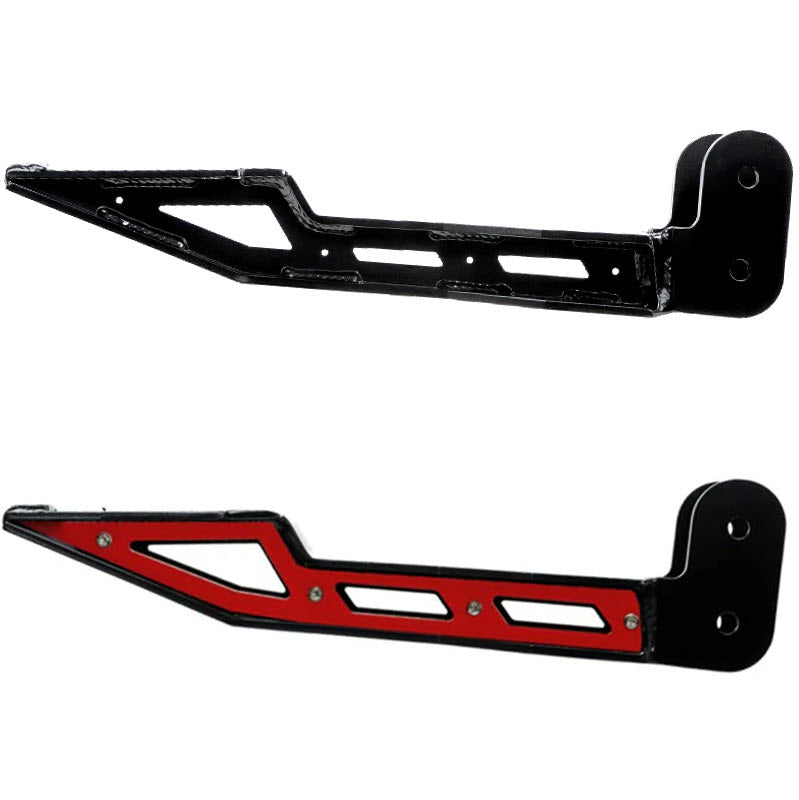

Rear Rock Rails (Geometry Correction Drop Brackets)

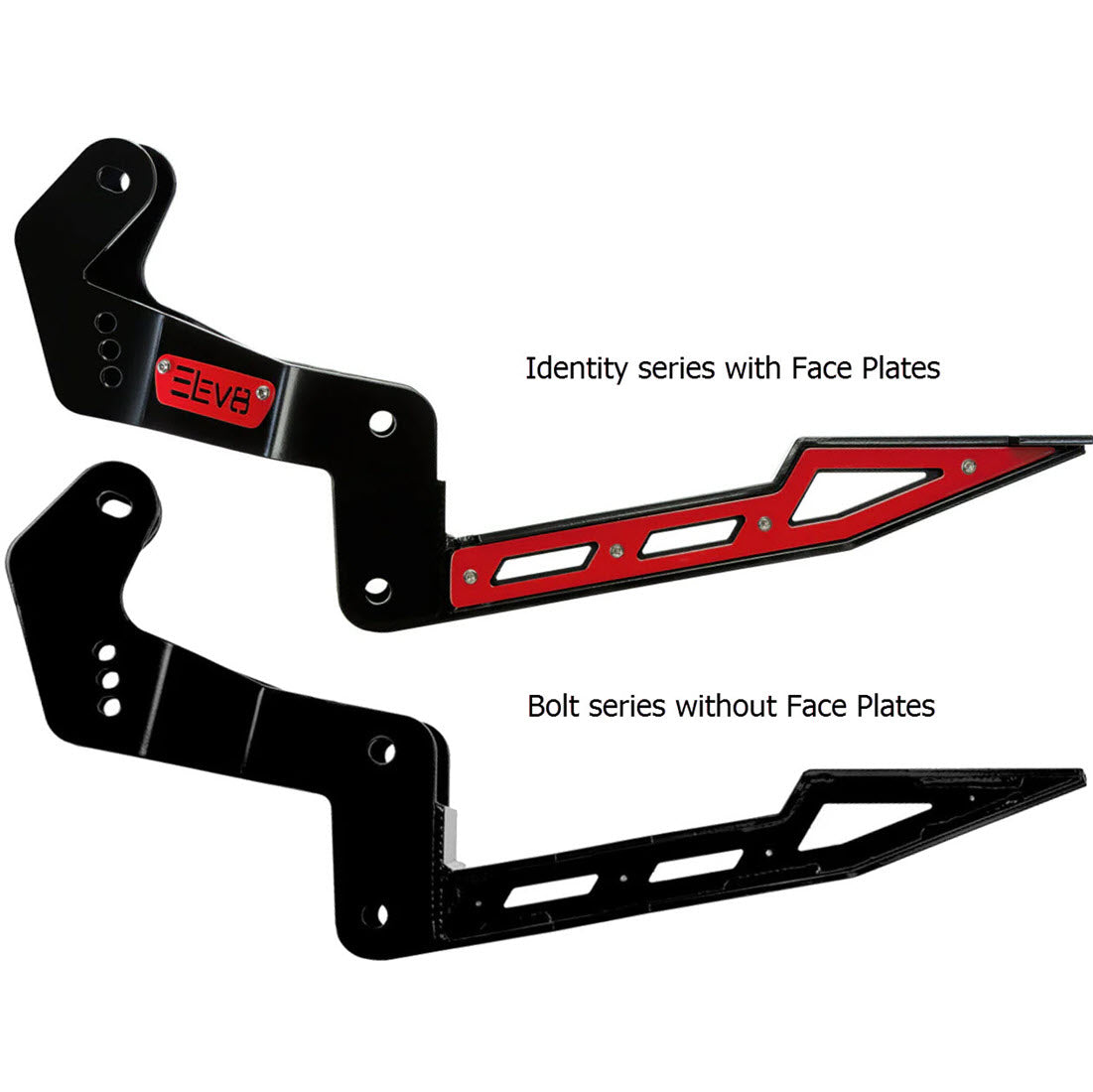

BOLT Series (no face plates)
IDENTITY Series (with face plates)
JEEP RUGGED STYLE™ REAR ROCK RAIL XL KIT (REAR GEOMETRY CORRECTION BRACKETS) for 2018 TO 2026 JL Wrangler Models
Size Selection
Rear
3.5" - recommended for 4 1/2"-9" lifts
3.5" - recommended for 4 1/2"-9" lifts
Why the Rock Rails XL Kit? We use the term "Rock Rail" to describe our geometry correction brackets. Geometry correction does just that....corrects the geometry of the control arms. There are 2 schools of thought on this. Some prefer to keep the arm in its factory location for clearance purposes. You did gain some clearance but that's all you gained. The cons to that will outweigh the pros for most customers. Largest con being ride.
The Rock Rail XL drops the frame mounting position of the lower control arms by 3 1/2". It is a inch lower than the standard Rock Rails. The kit comes with rear axle geometry correction brackets that raise the axle mounting position of the rear upper control arms by 2 1/2" . Making the angles of the upper and lower control arms more in-line with each other.
The Rock Rail XL Kit is compatible with ALL control arm brands including OEM stock arms. The brackets are easy to install, bolt onto the frame, and do NOT require any cutting of the frame.
Also included in the kit are Cam Plates for the rear axle bracket to dialing in pinion angle. Great for fixed arm lengths. Also included are Gusset Braces.
Jeep JL with White Lift Kit, Polished Faceplates and our NEW Front and Rear Rock Rails!

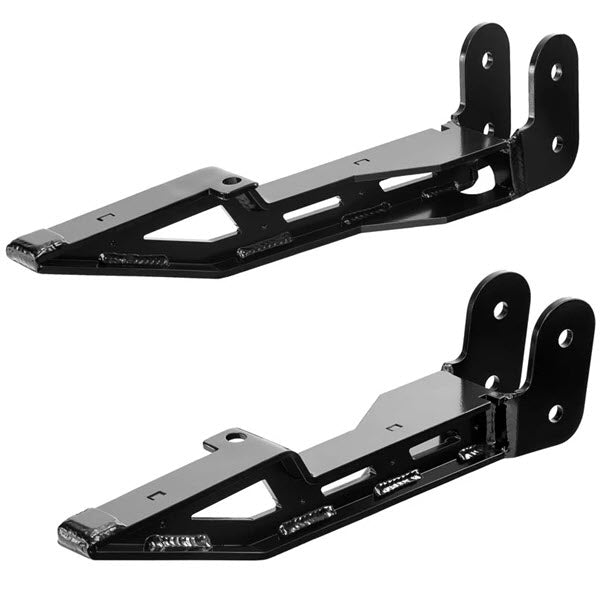

Rear Rock Rail XLs (Geometry Correction Drop Brackets)
for the rear upper arms for 4 1/2" lifts to 9" lifts
The process to get your ELev8 Fabricated Drop and Faceplates in a custom color has NEVER been EASIER!
ELev8 staff has 15 years of experience working with Prismatic Powders, our Custom Powder Coating POWDER partner.
The process is straightforward.
- If you want a custom color not listed you only have to go to the Prismatic Color Selection Site and select your color. Send us off your choice and you are ALL SET! We will have our local powder coater order the custom mixed powder from Prismatic Powders and then Powder Coat your ELev8 Control Arms. https://www.prismaticpowders.com/shop/powder-coating-colors
- If you want a Jeep OEM color just send us your Jeep Year, Make and Model with the Factory Color Name. If we have ordered this in the past you are all set.
Please allow 6 weeks for this process. The old adage, if it is worth doing then it is worth doing RIGHT! And at ELev8, doing things right to provide you Rugged Style is what we strive for every day on every order!
BUYER NOTE: While ELev8 has one of the best Warranties and Customer Return Polices in the business, we do make an exception for custom color orders. Custom color orders are NOT returnable unless we made a clear error on your order.
Quake LED HDX Light Strip kit for JEEP RUGGED STYLE™
Kit Contents:
- (2) Identity Series Front Geometry Correction Rock Rails (Optional)
- (2) Identity Series Rear Geometry Correction Rock Rails (Optional)
Fitment:
- Jeep Wrangler 2018 to 2026 (JL JLU) models
IF YOU HAVE ANY QUESTIONS, PLEASE GIVE US A CALL AT (865) 444-4060 OR EMAIL AT SALES@ELEV8OFFROAD.COM WITH ANY QUESTIONS YOU MAY HAVE.
